Plus:Dialog Results

Results

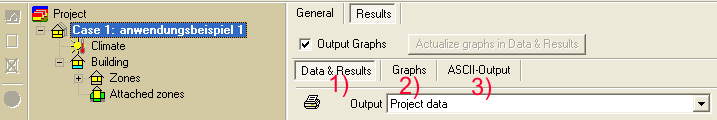

In this dialog you can see all results of the calculation of one case. Here are three options availible to show the results of the case.

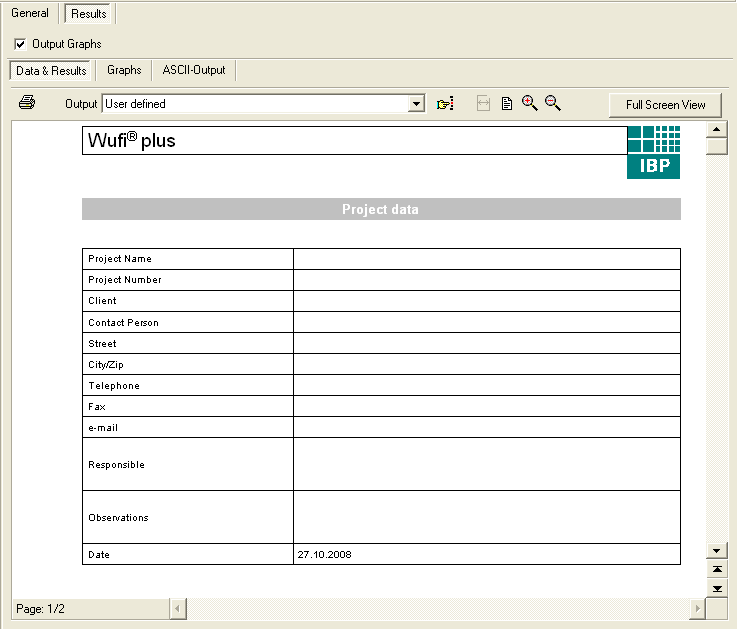

1) Data&Results

This page shows the report about the calculation. You can see the information of the project the climate conditions, general Data about the building and all data which insert into the case.

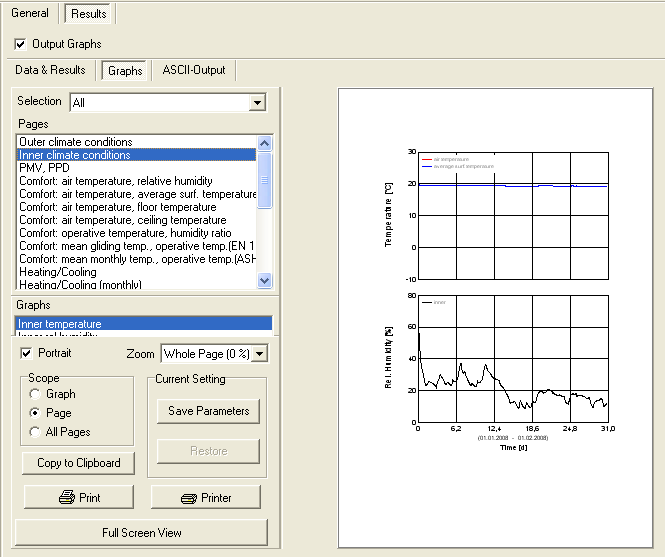

2) Graphs

This dialog shows all graphs of the outer/inner climate conditions, the comfort conditions inside the heated zone and of the energy consumption of the heating/cooling system and the flows of moisture, air and heat. The design of the graphs can modify by the user and it is possible to print the graphs directly.

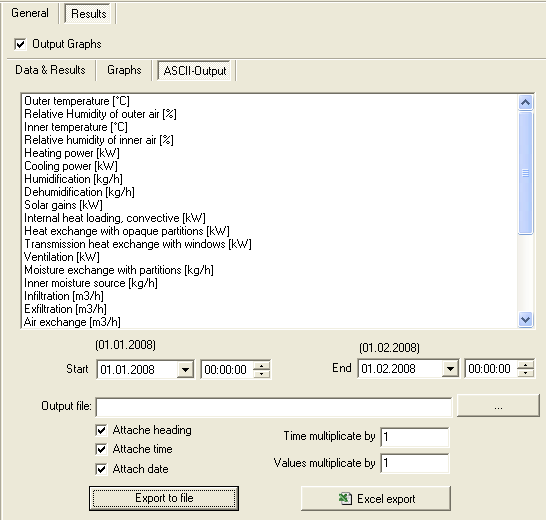

3) ASCII-Output

On this page it is possible to choose the results as ASCII-Files for an output into a *.txt-file or in a *.xls.-file.
